What are permeable Aggregates?
A permeable aggregate is an angular stone of various grades, impervious to water that allows excess runoff to drain by infiltrating its voids. It is a “no- fines” material often used in SuDs (Sustainable urban Drainage Systems.) SuDs are an approach to handling surface water in an environmentally sound way – minimising pollution, reducing flooding, and reducing the need for extra sewerage. Permeable aggregates can be made from a primary or recycled material and is most commonly graded 2-6mm, 4/20mm and 10/63mm.
What are permeable aggregates used for?
Permeable paving aggregates are used in drainage applications and bedding layers below block paving or driveways.
What is the bulk density of permeable aggregates?
2-6mm = 1.31 tonne per m3 loose or 1.46 tonne per m3 compacted.

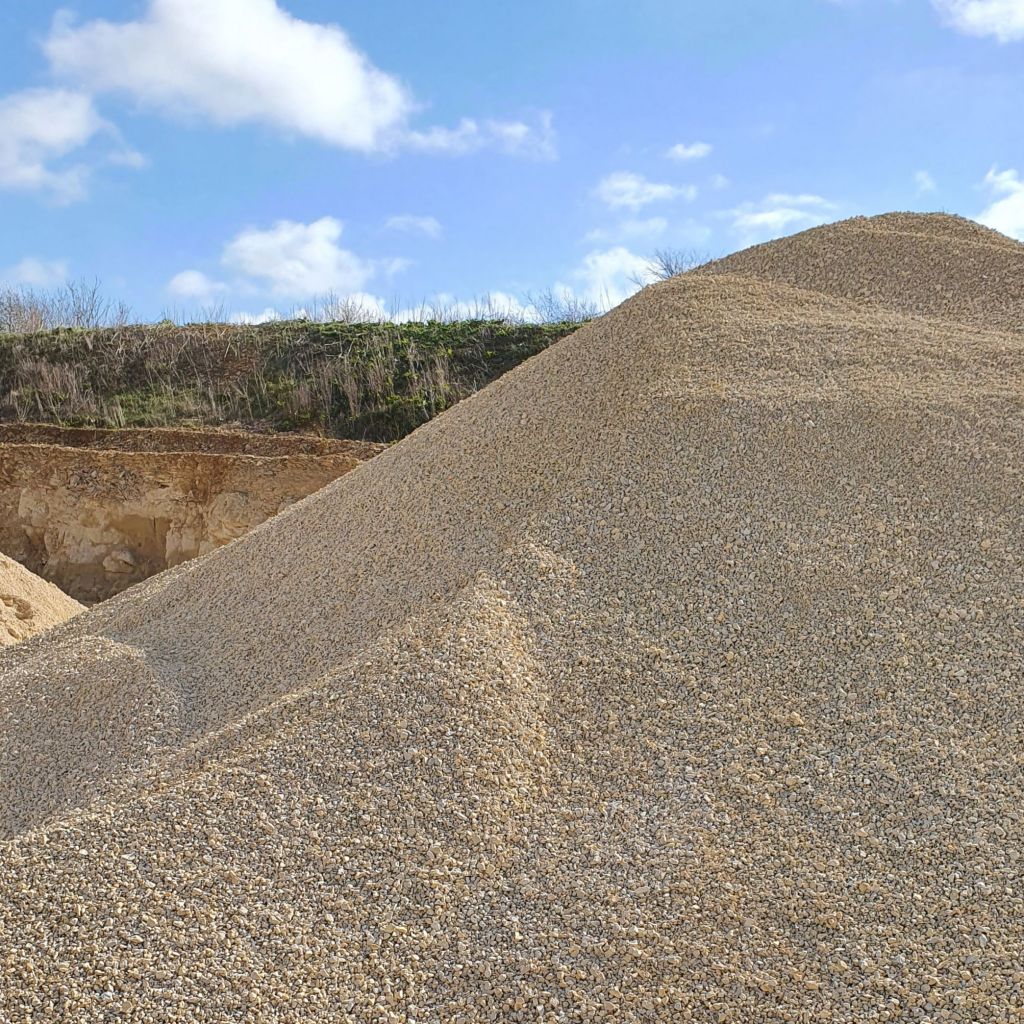

4/20mm = 1.45 tonne per m3 loose or 1.60 tonne per m3 compacted.
10/63mm = 1.7 tonne per m3 loose or 1.85 tonne per m3 compacted.
